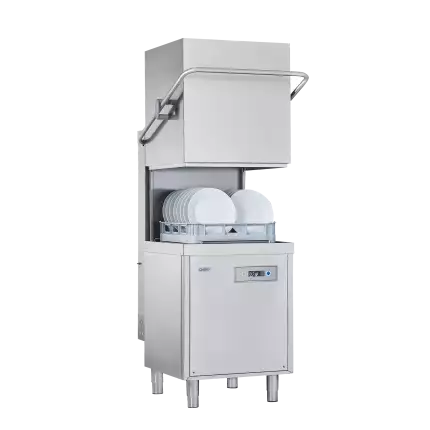

Intermediate P500 AWS With WRAS ‘AB’ Type Air Gap, Drain Pump and Integral Softener
R81713.62 excl VAT
- Dimensions Hood Open: 630 x 720 x 1940-1990mm
- Dimensions Hood Closed: 630 x 720 x 1470 x 1520mm
- Maximum Clear Entry Height: 440mm
- Water Inlet Height Floor Level: 265 – 315mm
- Drain Height Floor Level: 0-150mm
- Darin Size: 40mm
- Rack Size: 500mm2
- Water Supply Connection: 3/4″
- Required Water Pressure: 3.0 Bar
- Required Water Flow Rate: 11Ltrs/min 4Ltrs/min (WS)
- Operating Voltage Standard: 380-415AC/50/3N
- Operating Voltage Optional: 220-240AC/50/1N
- Amps Required – 3 Phase Water Fed @: 40C – 16A10C – 16A
- Rinse Boiler Heating 380-415AC/50/3N: 9.32kW
- Theoretical maximum Racks/Racks: 40
- Max no. of Plates Per Rack: 18
- Cycle Times(mins): 1.5/3/5
- Operating Noise Level: <70dB
- Net Weight: 130Kg
- Wash Pump Size: 0.58kW
- Wash Pump Capacity: 380Ltrs/min
- Wash Tank Capacity: 39Ltrs
- Wash Tank Heating: 4.05kW
- Wash Tank Temperature: 55C
- Rinse Boiler capacity: 7.5Ltrs
- Rinse Boiler Temperature: 82C
- Rinse Water Consumption: 3.25Ltrs
